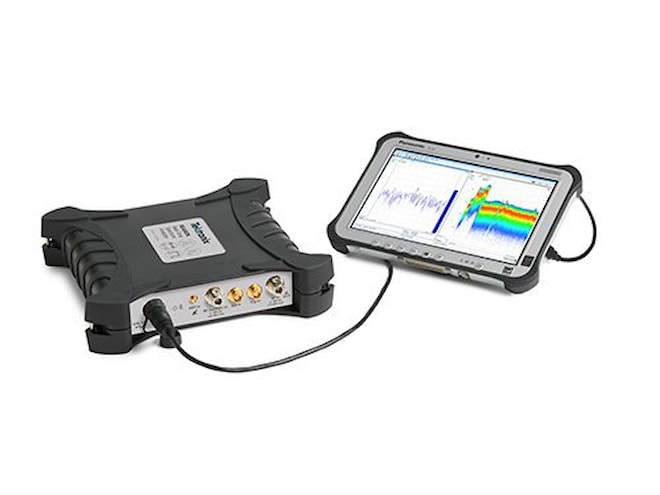

RSA503 & RSA507 Real Time Spectrum Analyzers

    • USB spektrální analyzátor pro měření mimo budovy
    • 9 kHz až 3 GHz nebo 9 kHz-7,5 GHz
    • 40 MHz real-time bandwidth
    • v dodávce základní verze SignalVu software
    • bateriové napájení
    • záruka: 3 roky
    TEKTRONIX
    Další parametry
    Cena na dotaz
    Kat. č: RSA503RSA507
    Dostupnost na dotaz.

    Výběru neodpovídá žádná položka.

    Parametry a specifikace

    Frequency range
    RSA 503A 9 kHz to 3 GHz
    RSA 507A 9 kHz to 7.5 GHz
    Frequency marker readout accuracy

    ±(RE × MF + 0.001 × Span) Hz

    RE: Reference Frequency Error

    MF: Marker Frequency [Hz]
    Reference frequency accuracy
    Initial accuracy at Cal (30 min warm-up) ±1 x 10-6
    First year aging, typical ±1 x 10-6 (1 year)
    Cumulative error (Initial accuracy + temperature + aging), typical  3 x 10-6 (1 year)
    Temperature drift ±0.9 x 10-6 (-10 to 60 °C)
    External reference input  BNC connector, 50 Ω nominal
    External reference input frequency

    Every 1 MHz from 1 to 20 MHz plus the following: 1.2288 MHz, 2.048 MHz, 2.4576 MHz, 4.8 MHz, 4.9152 MHz, 9.8304 MHz, 13 MHz, and 19.6608 MHz

    The spurious level on the input signal must be less than -80 dBc within 100 kHz offset to avoid on-screen spurious.
    External reference input range ± 5 ppm
    External reference input level -10 to +10 dBm
    RF input
    RF Input Impedance 50 Ω
    RF VSWR (RF Attn = 20 dB), typical

    < 1.2 (10 MHz to 3 GHz)

    < 1.5 (>3 GHz to 7.5 GHz)
    RF VSWR preamp ON, RSA503A and RSA507A, typical

    < 1.5 (10 MHz to 6 GHz, RF ATT=10 dB, preamp on)

    < 1.7 (> 6 GHz to 7.5 GHz, RF ATT=10 dB, preamp on)
    Maximum RF input level
    Maximum DC voltage ±40 V (RF input)
    Maximum safe input power

    +33 dBm (RF input, 10 MHz to 7.5 GHz, RF Attn ≥ 20 dB)

    +13 dBm (RF input, 9 kHz to 10 MHz)

    +20 dBm (RF input, RF Attn < 20 dB)
    Maximum safe input power (Preamp On)

    +33 dBm (RF input, 10 MHz to 7.5 GHz, RF Attn ≥ 20 dB)

    +13 dBm (RF input, 9 kHz to 10 MHz)

    +20 dBm (RF input, RF Attn < 20 dB)
    Maximum measurable input power

    +30 dBm (RF input, ≥10 MHz to Fmax, RF ATT Auto)

    +20 dBm (RF input, <10 MHz, RF ATT Auto)
